Project Description
Product Code: ALTAIR 60W 1200X600 MM LED Panel | SPL-126N60W
Key Features
Key Features
- Modular design fit all European ceiling grid with different frames.
- Less inventory risk, faster time to projects.
- Glare free: UGR<16, luminance limits @65°<1000cd/m.
- More useful light, over 90% lumen in cone 90°(zonal lumen).
- Flicker free, Class II, Isolated driver.
- Characteristic Louver Reflector design technology.
- Ideal for both commercial or general lighting purposes
Product Description
Product Description
With Characteristic Louver Reflector design technology, The ALTAIR LED panel light is an exceptionally high performance retrofit type LED light
Design for general lighting in a complete modular system, the ALTAIR Panel Light aims to save your inventory and cash flow and reduce the lead time for projects. Thanks to the detachable modular design, you can easy customized different size of frame(such as 595*595, 620*620, 295*1195…), it can be recessed / pendant / surface mounted (depends on frame or Accessories). It provides beautiful light distribution with low glare light(UGR<16 @ 4H*8H,less than 1000cd/m2 for 65-90 degree) . It is widely used in office, store, schools, hospital and so on. Nearly 60% energy saving compare to fluorescent T5 thanks to the high efficacy nearly 150lm per watt. 5-step(standard) MacAdam ellipses offer high quality light.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED Quantity | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 10000lm | 336pcs | >80 | 50,000hrs |
N.B Lumen values quoted on Cold White (6000K)
Input Data
Driver Brand | Power Supply Type | Power Factor | Input Voltage |
---|---|---|---|
Tridonic / Philips / Lifud | Constant Current | >0.9 | 220-240V AC |
Operating Details
Power | Ambient Temperature Range |
---|---|
60W | -20 to +50 °C |
Physical Details
Material | Finish | Ingress Protection |
---|---|---|
Iron Sheet + PC | White, Black | IP20 |
Options
LED Colour | UGR | Optics |
---|---|---|
Warm White, Neutral White, Cold White | <16 | 85×70° |
Packing Details
Quantity Per Carton | Carton Size | Carton Weight |
---|---|---|
4 pcs | 129 x 24 x 74 cm | 32 kg |

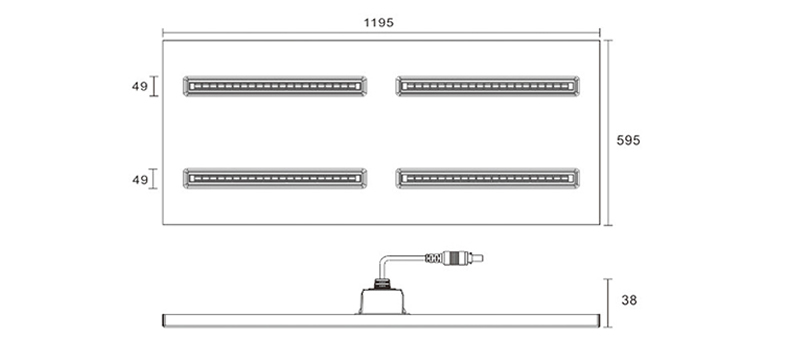

Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
