Project Description

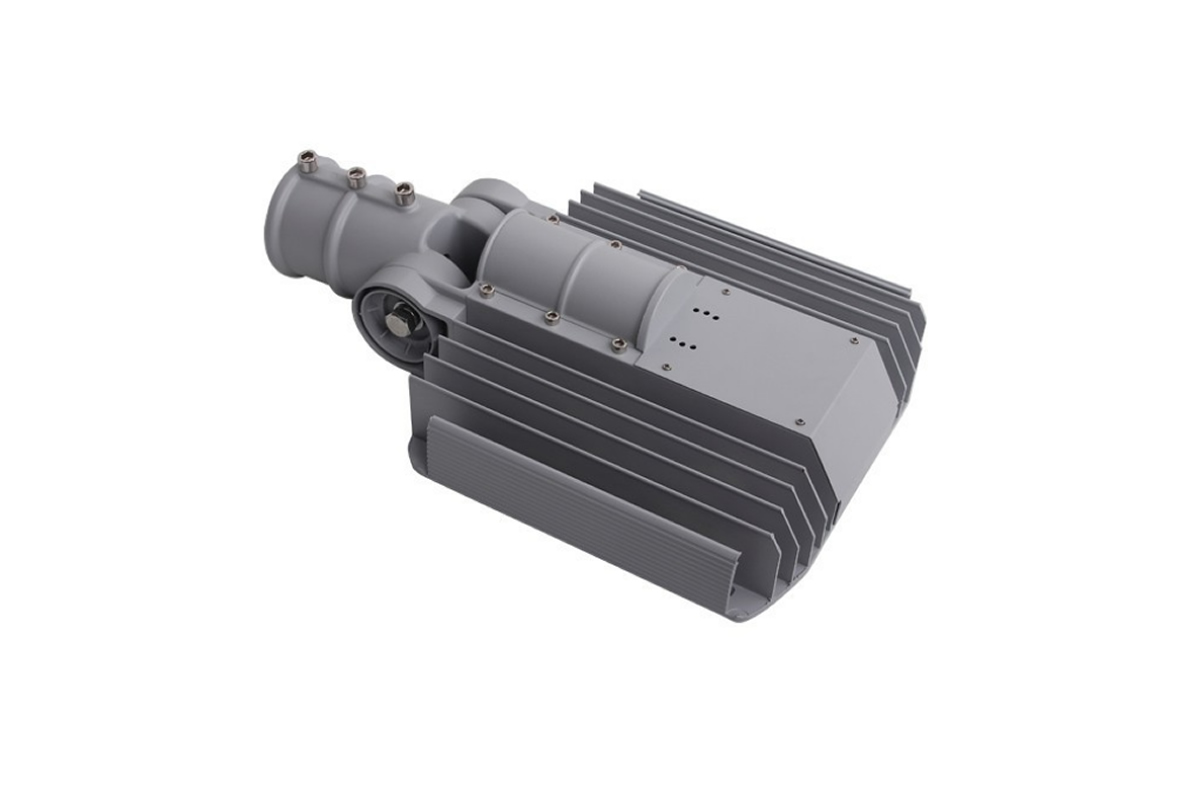

Product Code: NEPTUNE 200W LED Street Light | SL-A200W
Key Features
Key Features
- Professionally designed optical lens with beam angle 80×155°
- Bat wing light distribution curve, light more widely transmitted
- The bracket is adjustable 90-180 degree, lamp head upward will offer wider lighting to the edge of the road
- Heavy extruded aluminum alloy housing, multi ribs design for more efficient heat dissipation
- Apply for unique surface treatment technology, well-decorated, easy to install, lower maintenance cost and wide in application.
- Waterproof IP65
Product Description
Product Description
Technologically Advanced, low profile all-purpose NEPTUNE LED Street Lights
NEPTUNE LED Street Lights is the alternative to high pressure sodium and metal halide lamp in the street lighting market. AYANIE LED street lamp has the benefit over the traditional HID lamp in aspects of high quality lighting performance, energy saving, installation and maintenance friendly, environmental friendly and long lifespan.
Designed from the ground up as a totally optimized LED street and area lighting system, the NEPTUNE LED Street Light delivers incredible efficiency without sacrificing application performance. Beyond substantial energy savings and reduced maintenance, It achieves greater optical control when compared to traditional cobra head luminaires. The NEPTUNE Series is the better alternative for traditional street and area lighting with quick payback and improved performance.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 24000lm | PHILIPS SMD3030 | >80 | 55,000hrs |
N.B Lumen values quoted on Cold White (6000K)
Input Data
Driver Brand | Power Supply Type | Power Factor | Input Voltage |
---|---|---|---|
Meanwell | Constant Current | >0.95 | 85-265 V AC |
Operating Details
Power | Ambient Temperature Range |
---|---|
200W | -40 to +50 °C |
Physical Details
Material | Finish | Ingress Protection |
---|---|---|
Aluminum + PC | White,Silver,Black | IP65 |
Options
LED Colours | Optics |
---|---|
Warm White, Neutral White, Cold White | 80*155° |
Packing Details
Quantity Per Carton | Carton Size | Carton Weight |
---|---|---|
1 pcs | 73 x 36 x 20 cm | 7.5 kg |
Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
