Project Description
Product Code: GEMINI 200W LED Tunnel Light | TL-G200W
Key Features
Key Features
- Modular style design, easy to assemble, replace
- With Aluminum fins heatsink, increasing heat sinking area
- Integrated stamping 1060 Aluminum, high thermal conductivity
- All screw&nuts are made of #304 stainless steel, keep it stable
- Adjustable bracket with holes meet different lighting application
- Lens has high light transmittance, flame retardant, anti abrasion
- UV-proof, provide excellent light distribution
- High quality level waterproof connectors
- Waterproof IP65
Product Description
Product Description
Cutting-edge design and leading-edge performance Gemini LED Tunnel light

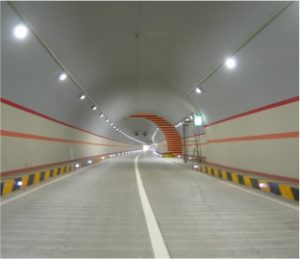

Gemini LED tunnel lights are used in tunnels for lighting large areas. LED tunnel light feature the high lighting efficiency, good stability and long working hours. Due to the fast moving traffic, high quality of light is required in the tunnels.
Keeping in mind the safety of drivers, transportation and infrastructure, Gemini LED Tunnel light is the best suited lighting option for such application. Not only this, due to the energy-saving and safety, the LED tunnel lighting has become a major lighting application. Our LED tunnel lights are with highly reliable environment-friendly material casing, the transparent part is stainless steel strengthened glass, the whole LED lamp is waterproof and dust proof, it is also antiseptic and anti-rust. It can work fine in the environment that many cars passed by it, and the LED tunnel lights can work in high temperature or damp environment.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 24000lm | PHILIPS SMD3030 | >80 | 55,000hrs |
N.B Lumen values quoted on Cold White (6000K)
Input Data
Driver Brand | Power Supply Type | Power Factor | Input Voltage |
---|---|---|---|
Meanwell | Constant Current | >0.95 | 100-305 V AC |
Operating Details
Power | Ambient Temperature Range |
---|---|
200W | -40 to +50 °C |
Physical Details
Material | Finish | Ingress Protection |
---|---|---|
Aluminum + PC | White, Silver, Black | IP65 |
Options
LED Colours | Optics |
---|---|
Warm White, Neutral White, Cold White | 30° / 60° / 90° |
Packing Details
Quantity Per Carton | Carton Size | Carton Weight |
---|---|---|
1 pcs | 64 x 32 x 16 cm | 10.5 kg |
Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
